Factory 20 Years Experience SPC Panel Production Line LVT WPC Vinyl
Flooring Making Machine
Product Description

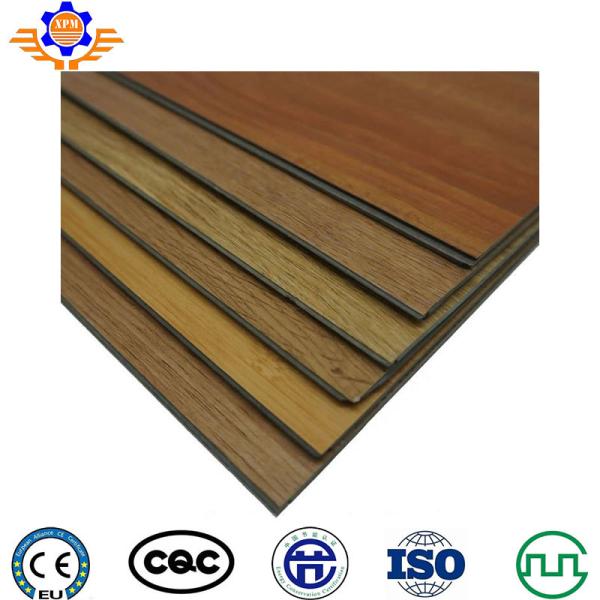

SPC means stone plastic composite, also named Rigid vinyl plank,
which is new environment-friendly flooring, with zero formaldehyde,
mildew, moisture, fire-proof, pest control, simple installation.
SAIJIA machinery company SPC floor is extruded by extruder and
T-die extrusion PVC substrate, with three-roll or four-roll
calender, respectively, PVC wear layer, PVC color film and PVC
substrate, one-time heating paste, embossed products , The process
is simple, close by heat to complete, do not need glue.
| Extruder model | Motor power | Suitable material | Products thickness | Products width | Output |
| SJSZ92/188 | 110kw | PVC | 2-8MM | 1220MM | 600-700kg/h |
4 Roll Calender of PVC Vinyl Floor Extrusion line
Specifications for PVC vinyl floor making extrusion machine
| 1 | Use raw materials | PVC plus accessories |
| 2 | Production line speed | 0-6m / min |
| 3 | Maximum yield | 600-800kg / h |
| 4 | Total installed power | 200kw |
| 5 | Actual energy consumption | 140kw |
| 6 | Air consumption | 0.4m3 / min |
| 7 | Air pressure | 0.6mpa |
| 8 | Water circulation | 0.3m3 / min |
| 9 | Working temperature | 0-40 ° C |
All Extrusion Line
ALL PRODUCTS WE SELL
| PVC foam board production line | Wide floor sheet, water proof sheet production line |
| PVC rigid flooring machine | PVC transparent sheet production line |
| PVC edge banding machine (Single strip) | PVC construction board production line |
| PVC marble sheet production line | PVC/WPC door panel production line |
| PC,PMMA,ABS,PS sheet production line | PVC,PE,PP/WPC profile production line |
| PP/PE thick board production line | PVC window profile production line |
| PVC roofing sheet production line | PVC marble profile production line |
| PVC edge banding machine | PVC,PE,PP,PPR pipe production line |
| PVC free foam sheet production line | Single wall/double wall corrugated pipe line |
| PC,PP,PE hollow sheet production line | PP/PE foam sheet production line |
| ABS single layer & multi-layers sheet production line | PVC/WPC foam flooring machine |
Please contact us for more details!
| Type | XPM92/188 | XPM110/220 |
| Product Size | L=970㎜, δ=3-8㎜ | L=970㎜, δ=3-8㎜ |
| Capacity | 650-800KG/H | 1000-1250KG/H |
| Calender | 5-rollers calender | 5-rollers calender |
| Roller | 4×Φ450×1500mm 1×Φ600×1500mm | 4×Φ450×1500mm 1×Φ600×1500mm |
| Surface Roughness | Ra≤0.025um | Ra≤0.025um |
| Surface Hardness | HRC≥50 | HRC≥50 |
| Extruder | SJSZ92/188 Twin Screw Extruder | SJSZ110/220 twin screw extruder |
| Main Motor | 110KW Siemens motor,ABB inverter | 185KW Siemens motor,ABB inverter |
Packaging
Company Profile
SAIJIA MACHINERY
Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic
machine.The main products are popular exported to international
market,including Russia,Australia, Southeast Asia,Middle East,East
Europe.Africa and other countries.
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production
experience is mature and rich. Among them, it has been exporting
for more than 20 years, and more than 100 countries have exported.
The annual export turnover is about 15 million US dollars. Our
company's production base covers more than 50,000 square meters. ,
Modern office and production room more than 35,000 square meters,
with experienced high-quality staff team, first-class equipment,
perfect and effective quality assurance system, advanced and
complete testing equipment.
Workshop
We know the quality is the life of our company. Our company insists
to manufacture all machine units by ourselves in order to control
quality strictly by our quality inspectors. To implement this
concept, we have built our own tooling and CNC workshop. Even if
some parts from our certified supplier, our quality inspector will
check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can
have long term cooperation in near future!
Certificates
International certification, verification certificates of equipment
include:CE electrical certificate, CE mechanical certificate, ISO
quality management certificate, Nigerian quality certificate etc.
FAQ
Q.1.ARE YOU A MANUFACTURER OR TRADING COMPANY?
● SaiJia is a manufacturer who is registered in the Chinese
Business Administration and has the right to operate and sell it
legally.
● SaiJia cooperates with Ecer who will supply you a lot of service
to protect you .
● SaiJia has a professional engineer team who all have more than 20
years experience in plastic pipe extrusion line and plastic
machinee manufacturing .
Q.2.HOW TO VISIT OUR FACTORY?
● If you are interested in our products, you may visit our factory
at any time , we can pick you up from the station(Wuxi East Railway
Station) or the airport near our city .
● Seeing is believing , you can see our machine quality after your
visit .
Q.3.HOW TO ENSURE THE MACHINE QUALITY?
● In order to ensure the accuracy of each part, we are equipped
with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by
inspecting personnel.
● Before shipping, the whole machine will be commissioned in our
factory to make sure it can run well in your factory.
Q.4.HOW TO GUARANTEE YOUR FUNDS?
● We go through bank letter of credit service, which can protect
your funds to be safe.
● We will send you pictures of the machine every week to ensure the
delivery.
Q.5.SAIJIA AFTER-SALE SERVICE
● We will delivery the machine and provide the bill of load on time
to make sure you can get the machine quickly
● When you finish the preparation conditions,our fast and
professional after service engineer team will go to your factory to
install the machine,give you the operating manual,and train your
employee until they can operate the machine well.
● We often ask feedback and offer help to our customer whose
machine have been used in their factory for some time.
● We provide 1 year warranty with spare parts free and life-long
technical support .
