PVC Plastic Roofing Tile Making Machine Production Line Glazed
Extrusion Line
Advantage:
Anti-noisy,anti-erosion,heating resistance and water proof.
Features:
1.Optional to adopt conical twin screw extruder and parallel twin
screw extruder.
2.Supply formula guide and staple raw material purchase
3.Professional analyzing and design by considering production cost
and tiles' performance.
4.Single layer or A+B/A+B+C/A+B+A layers avaibable
| No. | Machine name | Qty |
| 1 | Screw conveyor(with push device) | 1pc |
| 2 | conical two screw extruder | 1pc |
| 3 | Vacuum feeder for pellet | 1pc |
| 4 | Drying hopper | 1pc |
| 5 | single screw extruder | 1pc |
| 6 | Extrusion mould | 1pc |
| 7 | Distributor | 1pc |
| 8 | Embossing roller | 1pc |
| 9 | Forming machine with trimming device | 1pc |
| 10 | Cutter | 1pc |
| 11 | Stacket | 1pc |
| 12 | Forming for ridger | 1pc |
| 13 | Mould of top rodge,three way ridge,hip rodge,end of ridge | 4pcs |
| 14 | Oven | 1pc |
| 15 | Mixer unit | 1pc |
| 16 | Screw conveyor for mixer unit | 1pc
|
Products Description
Extrusion Part
1. forced extruding
2. high quality
3.wide adaptability
4.long working life
5.low shearing speed
6.hard decomposition
7.good compounding& plasticization effect
8.direct shaping of powder material and etc.
Mould Part
Name: T-DIA or Ectrusion mould
1. Clothes hanger runner
2. Mirror polishing Cr plating
3. Three dimensional flow simulation software design
Embossing Roller
1. Up roller is Embossing roller, the down roller is mirror Roller.
Roller surface treatment by hard chrome plated (depth 0.10-0.15)
2. Design of spiral flow passage in roller
3. Motor separately drive to ensure consistent speed

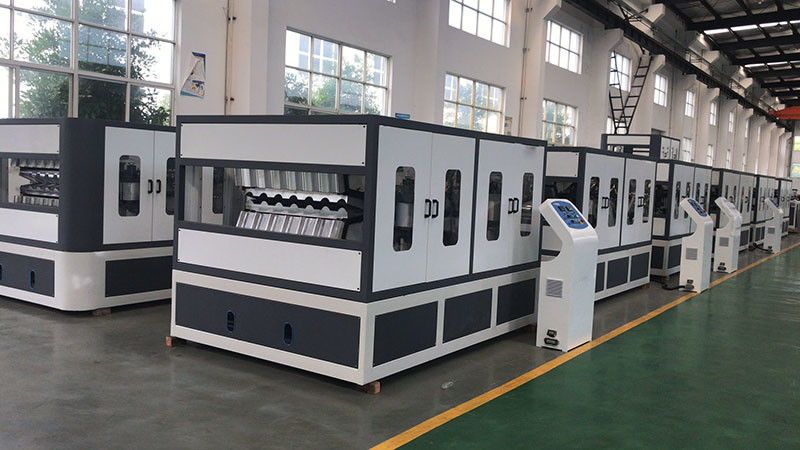

Forming Machine
Name: Corrugated Roof Tile Forming Machine
1.Haul off roller material: Neoprene CR
2.Rise and drop method of mould: pneumatic
3.Fine adjustment method: manual
Cutter
Technical Parameters:
1.Special positioning cevice to ensure the cutting accuracy
2.Cutting method for the saw blade cutting
3.The horizontal movement motor is 0.37kw
4.PLC HMI operation
Crusher
Technical Parameters:
1.The motor power is 11kw,15kw,22kw,30kw
2.Broken the amount of 200-600kg/h
3.Broken diameter 510*290
The main purpose:
Used for on-line production to produce edge scraps for recycling
High Speed Mixer Unit
Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75
High Speed Mixing Unite
Name: High speed mixing unit
Technical parameters:
Model Capacity (kg/hr) Motor(kw)
SRL-Z200/500 350-450 30/42
SRL-Z300/600 550-650 40/55
SRL-Z500/1000 750-1000 55/75
| No. | Machine name | Qty |
| 1 | Screw conveyor(with push device) | 1pc |
| 2 | conical two screw extruder | 1pc |
| 3 | Vacuum feeder for pellet | 1pc |
| 4 | Drying hopper | 1pc |
| 5 | single screw extruder | 1pc |
| 6 | Extrusion mould | 1pc |
| 7 | Distributor | 1pc |
| 8 | Embossing roller | 1pc |
| 9 | Forming machine with trimming device | 1pc |
| 10 | Cutter | 1pc |
| 11 | Stacket | 1pc |
| 12 | Forming for ridger | 1pc |
| 13 | Mould of top rodge,three way ridge,hip rodge,end of ridge | 4pcs |
| 14 | Oven | 1pc |
| 15 | Mixer unit | 1pc |
| 16 | Screw conveyor for mixer unit | 1pc |
Product Application
Product Application
Machine name: Plastic PVC Composite Roof Tile Making machine

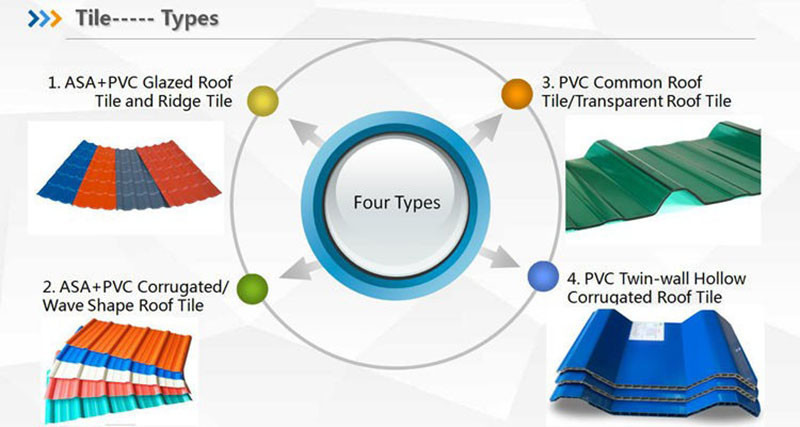

Finished product : Plastic roofing , PVC composite roofing , Plastic corrugated
roofing
Product features:
Using life more than 20years
Good sound and heat insulation
Fire resistance, anti-corrosion
Using recycled PVC ,environment-friendly
Excellent anti-load performance
Easy to install, packing and transport
Plants, steel factories, warehouse, farm market, market access,
sheds and other high-end roofing materials. Especially in corrosive
chemical plants, smelters, ceramic plants, soy sauce factory,
chemical plant, printing and dyeing plant, organic solvent factory,
acid, alkali and other corrosive plant.
Company Profile
SAIJIA MACHINERY
Continously Innovating And Manufacuturing Of Plastic Machinery.ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.Our main products are: plastic pipe extrusion line and plastic
machine.The main products are popular exported to international
market,including Russia,Australia, Southeast Asia,Middle East,East
Europe.Africa and other countries.
ZHANGJIAGANG SAIJIA MACHINERY TECHNOLOGY CO.,LTD.
Zhangjiagang Saijia was established in 2000. The production
experience is mature and rich. Among them, it has been exporting
for more than 20 years, and more than 100 countries have exported.
The annual export turnover is about 15 million US dollars. Our
company's production base covers more than 50,000 square meters. ,
Modern office and production room more than 35,000 square meters,
with experienced high-quality staff team, first-class equipment,
perfect and effective quality assurance system, advanced and
complete testing equipment.
Workshop
We know the quality is the life of our company. Our company insists
to manufacture all machine units by ourselves in order to control
quality strictly by our quality inspectors. To implement this
concept, we have built our own tooling and CNC workshop. Even if
some parts from our certified supplier, our quality inspector will
check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can
have long term cooperation in near future!
