PVC Ceiling Panel Board Building Decoration Materials Extrusion
Machine New PVC Sheet Extrusion Line
Product Description:
General Description of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC
PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING
MACHINERY
1. Plastic ceiling panle production line is using PVC material and
it is applied to produce PVC window door frame profile,PVC ceiling
panel profile,PVC cable trunking profile by changing different
mould.

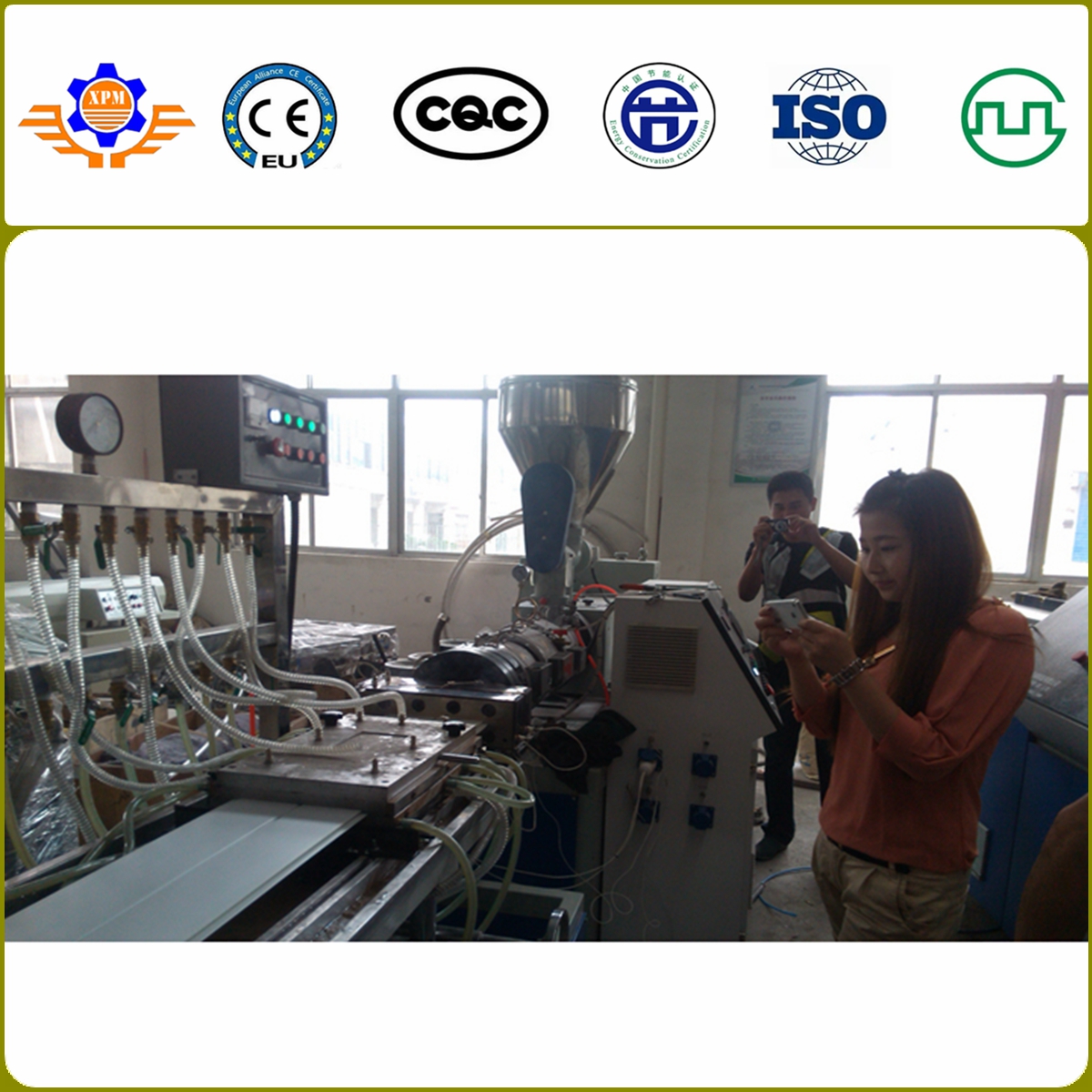

2.This production is composed of conical twin-screw
extruder,mould,vacuum calibration table, haul-off, cutter and
stacker.
Production Flow of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC
PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING
MACHINERY

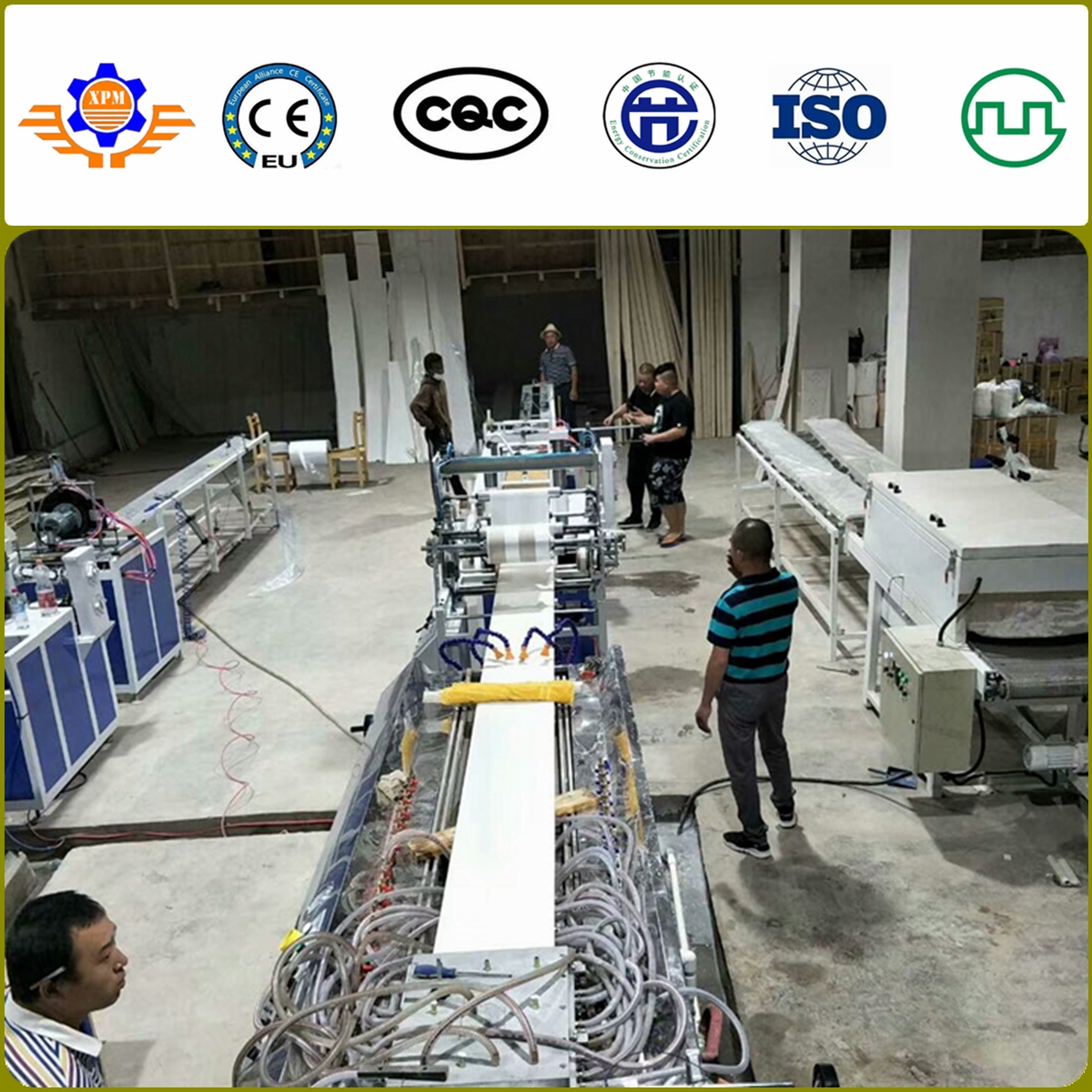

PVC powder + additives → Mixer → Screw feeder → Extruder → Mould →
Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker
Main Technical Parameter of PLASTIC PROFILE PRODUCTION LINE/PLASTIC
PVC PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING
MACHINERY
| Model | XPM120 | XPM180 | XPM240 | XPM300 | XPM600 |
| Product max size (mm) | 120x50mm | 180x50 mm | 240x100 mm | 300x120 mm | 550x120 mm |
| Extruder | SJSZ45/90 | SJSZ51/105 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 |
Capacity (kg/h) | 120 | 150 | 250 | 250 | 380 |
Machine Length (m) | 18 | 20 | 24 | 24 | 28 |
Main Machine List of PLASTIC PROFILE PRODUCTION LINE/PLASTIC PVC
PROFILE EXTRUDER/EXTRUDING LINE/EXTRUSION MACHINERY/MAKING
MACHINERY
| No | Machine Name | Q'ty
|
| 1 | SJSZ series conical twin screw extruder (Equipped with automatic feeding unit) | 1 set |
| 2 | Profile Extrusion Mould | 1 set |
| 3 | Vacuum calibration table | 1 set |
| 4 | Hauling-off machine | 1 set |
| 5 | Cutting machine | 1 set |
| 6 | Stacker | 1 set |
| Optional Auxiliary machines |
| 1 | SHRL series material mixing machine | 1 set |
| 2 | Crushing machine | 1 set |
| 3 | Milling machine | 1 set |
We offer a wide range of calibration tables, providing an optimal
and tailor-made solution for every need and application.
Features
Motor-driven height and side movement
Motor-driven longitudinal movement
Manuel tilting movement
| All parts which contact with water, are made of stainless steel |
Low maintenance cost
Product Range
Table length from 4,5 to 14 mt
| Vacuum pumps can be added upon request |
Focusing on the energy saving system, Lima Extrusion provides LESS
(Lima Energy Saving System) to benefit vacuum energy savings up to
80%.
Features
Vacuum energy savings up to 80%
Vacuum pumps are driven by individual frequency
Inverters in order to use them according to the real need
Low noise level
Closed circuit to save as much water as possible during the
extrusion process
Product Range
Table length from 4,5 to 14 mt
Vacuum pumps can be added upon request
Our Services
1. Before order: We will provide relevant information on various
technology and business consulted by customers. If clients want to
visit our company, we will offer all they need for convenience.
2. During order: company designs groundsill installation chart for
water, electricity and gas of equipment basing on real condition
and customers’ requirements and provides detail order list and
matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at
posted locale for installation, debugging, training and technology
transfer till customers can operate independently and manufactures
eligible product. Service personnel have to arrive at customer’s
locale in time when we provide service for client again.
3. After order: we will offer 12months after sales service freely,
but our service will be life-long. if some parts are broken, we
will send them by express, air or ship as soon as we can.
